SS11 Series
Specification
Approval & Rating :
[ PDF Download ]
| Rating | Approval |
| 16(4)A 250VAC〜T125/55 |    |
| 6A 125/250VAC〜T125/85 10A 125/250VAC〜T125/85 12A 125/250VAC〜T125/85 16(4)A 250VAC〜T125/85 |
 |
PANEL CUTOUT DIMENSION :
|
 |
| PANEL THICKNESS | X | Y |
| 0.75~1.25mm |  |
 |
| 1.25~2.0mm |  |
 |
| 2.0~3.0mm |  |
|
Electrical :
(電氣性能)
| (接觸電阻) INITIAL CONTACT RESISTANCE | 20Ω Max |
| (操作力量) OPERATION FORCE | 500±200gf |
| (絶緣電阻) INSULATION RESISTANCE | 100mΩ Min 500VDC |
| (電氣壽命) ENDURANCE | 10,000 CYCLES |

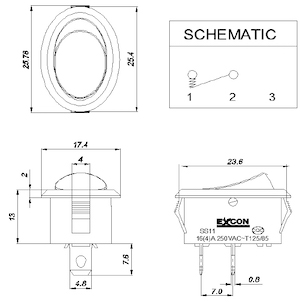

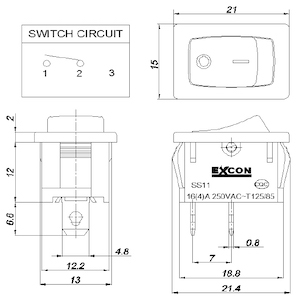

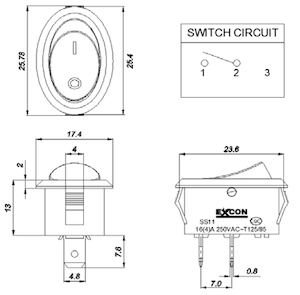

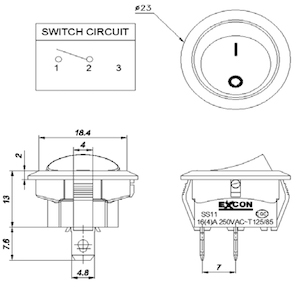

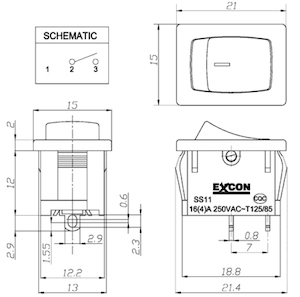

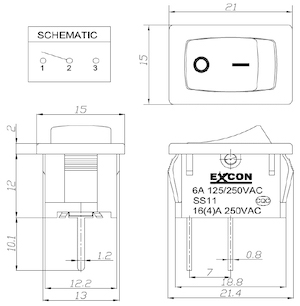

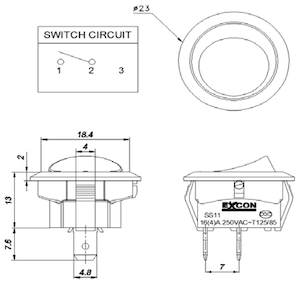

SPEC DRAWING(規格圖面) Unit: mm

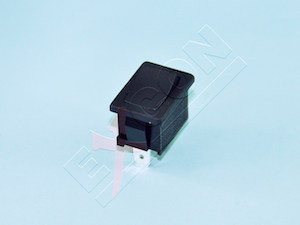

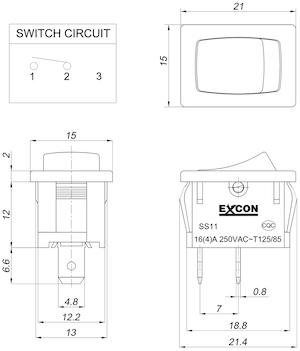

| SS11-BBNNQ-R20-R | |
 |
 |

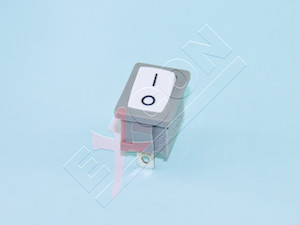

| SS11-WEIBC2-R20-R | |
 |
 |

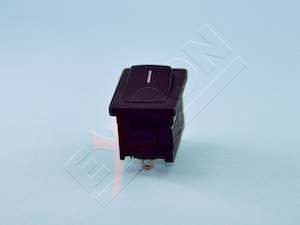

| SS11-BBAWA-R23-R | |
 |
 |

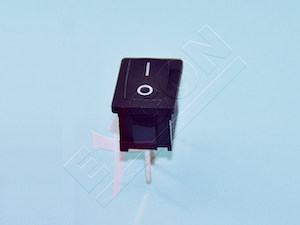

| SS11-BBIWP-R20-R | |
 |
 |

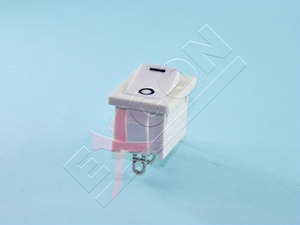

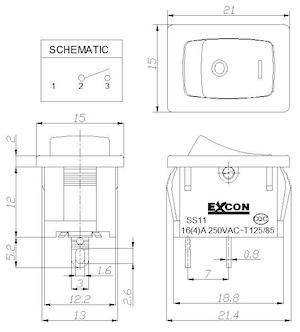

| SS11-WWTBS-R | |
 |
 |

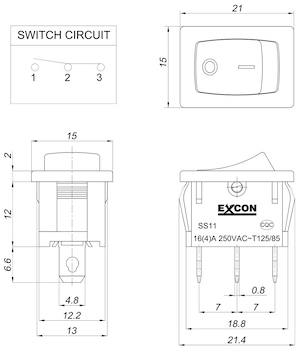

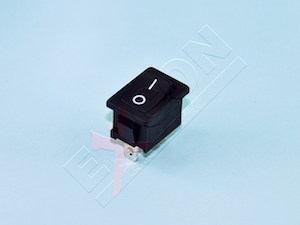

| SS11-BBIWG-R30-R | |
 |
 |

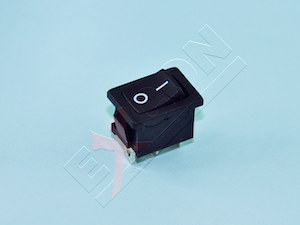

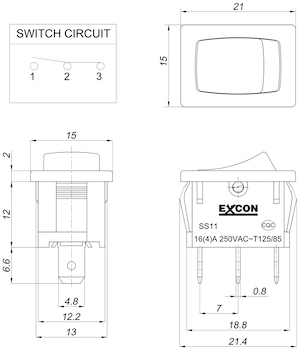

| SS11-BBNNQ-R30-R | |
 |
 |

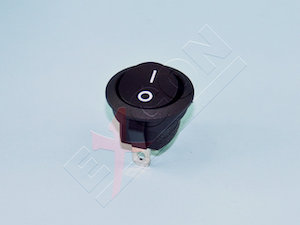

| SS11-BBIWG-RR20-R | |
 |
 |

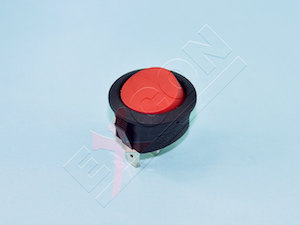

| SS11-RBNNQ-RR20-R | |
 |
 |

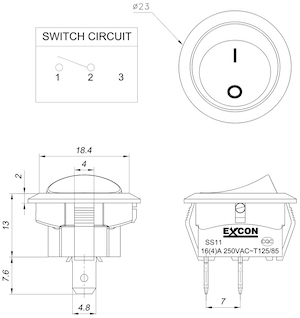

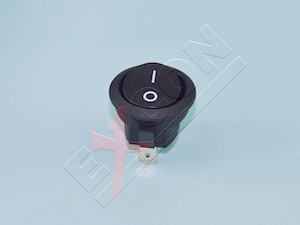

| SS11-BBIWQ-RR20-R | |
 |
 |

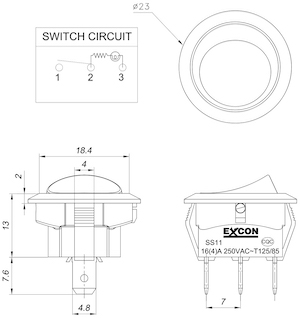

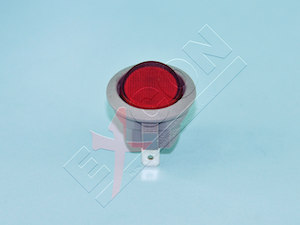

| SS11-RENNQ-RR20-L03-R | |
 |
 |

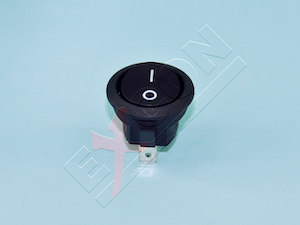

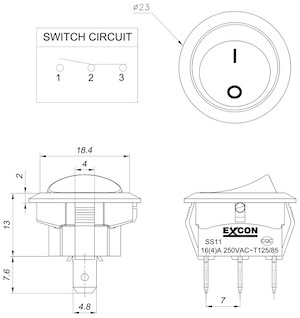

| SS11-BBIWQ-RR30-R | |
 |
 |

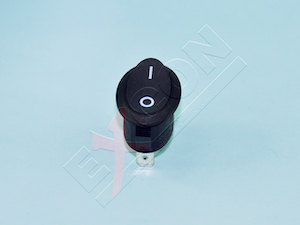

| SS11-BBIWQ-RE20-R | |
 |
 |

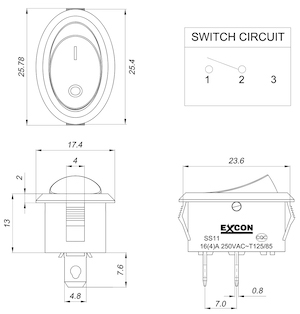

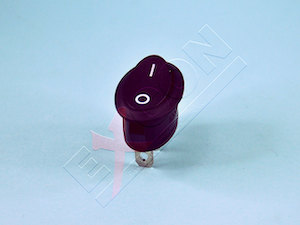

| SS11-BBIWG-RE20-R | |
 |
 |

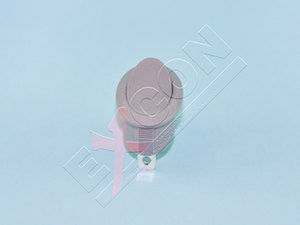

| SS11-EENNG-RE22-R | |
 |
 |

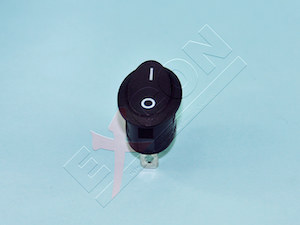

| SS11-BBIWG-RE30-R | |
 |
 |

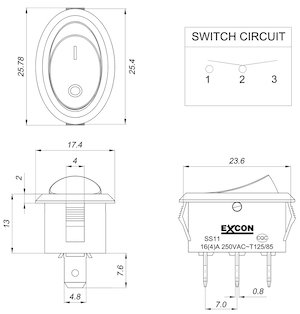

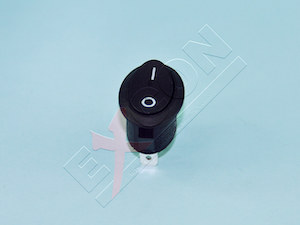

| SS11-BBIWQ-RE30-R | |
 |
 |

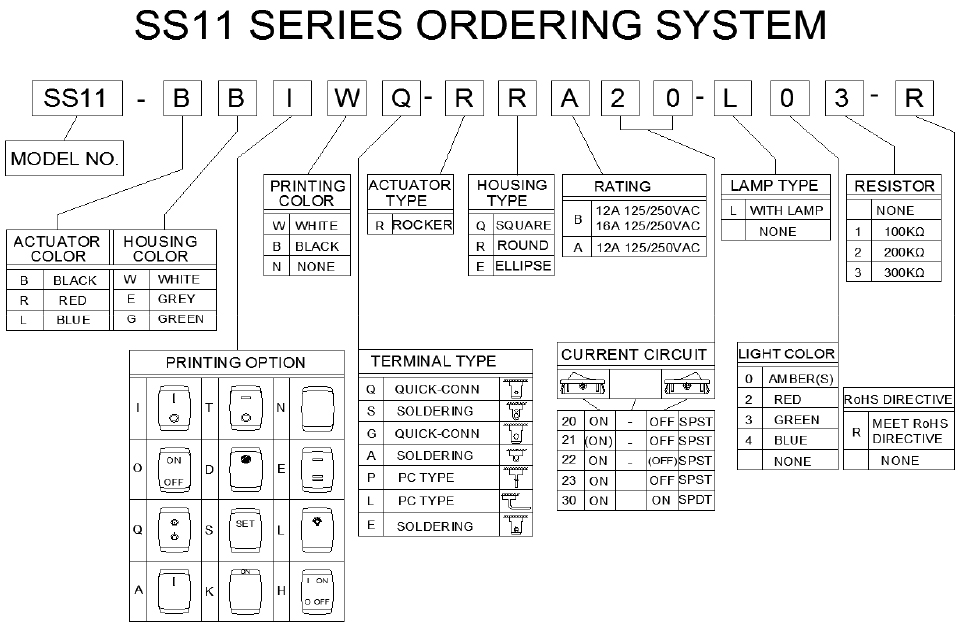

HOW TO ORDER (採購識別碼)
