MPS11 Series
Specification
Approval & Rating :
[ PDF Download ]
| Rating | Approval |
| 5/80A 250VAC〜T85/55 |     |
| 10A 250VAC 16A 125/250VAC |
|
| TV-5 125VAC | |

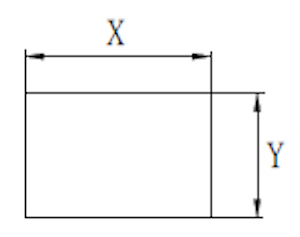

PANEL CUTOUT DIMENSION :
|
 |
| PANEL THICKNESS | X | Y |
Electrical :
(電氣性能)
| (接觸電阻) INITIAL CONTACT RESISTANCE | 20Ω Max |
| (操作力量) OPERATION FORCE | 500±200gf |
| (絶緣電阻) INSULATION RESISTANCE | 100mΩ Min 500VDC |
| (電氣壽命) ENDURANCE | 10,000 CYCLES |

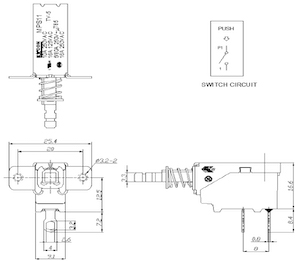

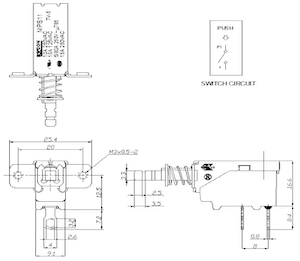

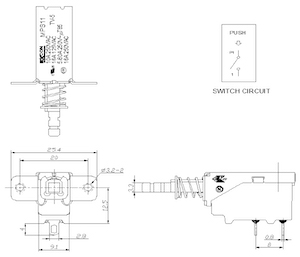

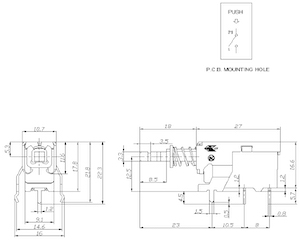

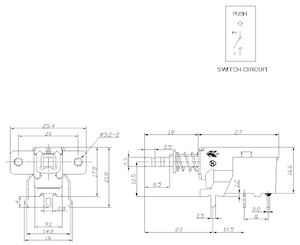

SPEC DRAWING(規格圖面) Unit: mm

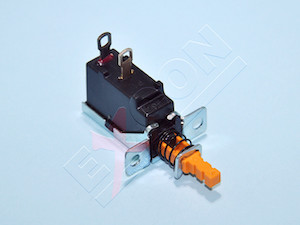

| MPS11-HL180-3-R | |
 |
 |

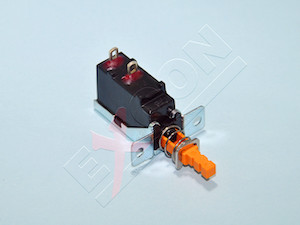

| MPS11-HS180-R | |
 |
 |

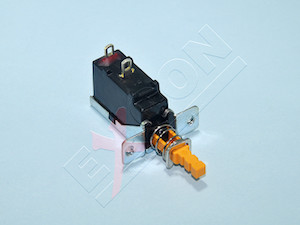

| MPS11-MS180-R | |
 |
 |

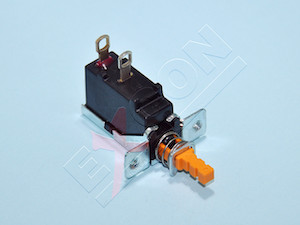

| MPS11-ML180-R | |
 |
 |

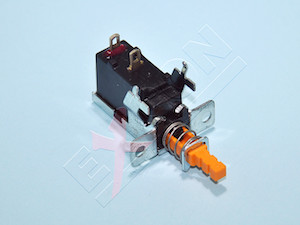

| MPS11-IS180-R | |
 |
 |

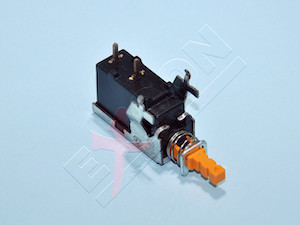

| MPS11-PC180-R | |
 |
 |

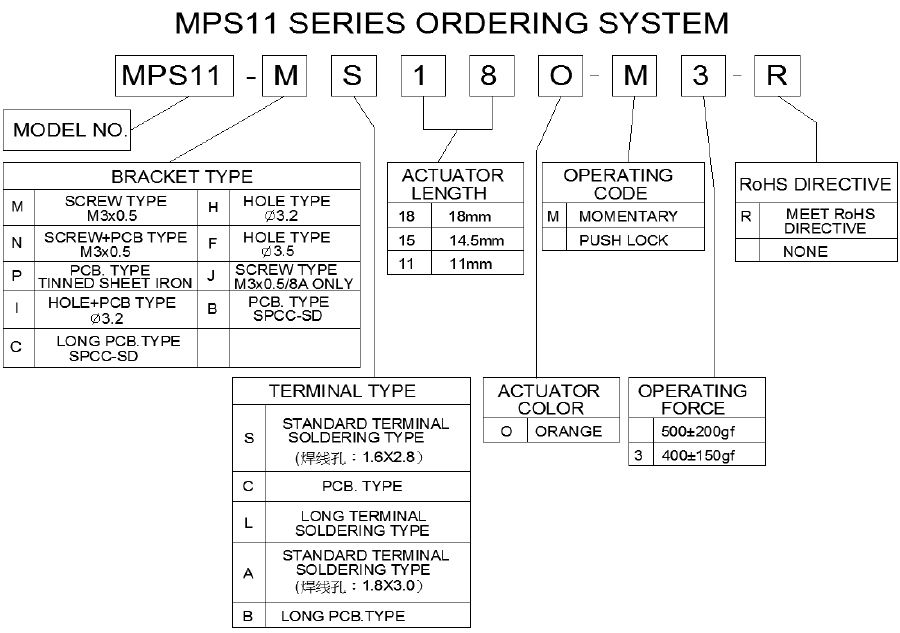

HOW TO ORDER (採購識別碼)
