MFR01 Series
Specification
Approval & Rating :
[ PDF Download ]
| Rating | Approval |
| 8(3)A 125/250VAC〜T125/55 |  |
| 12A-8(3)A 250VAC〜T125/55 |    |
| 8A 125/250VAC | |

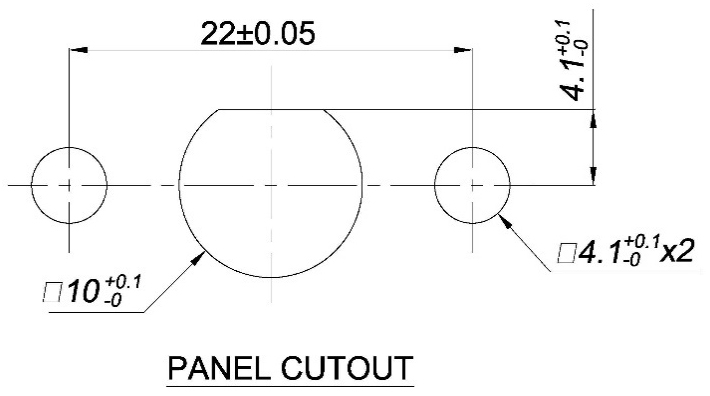

PANEL CUTOUT DIMENSION :
(面板安裝孔開口尺寸)
Electrical :
(電氣性能)
| (接觸電阻) INITIAL CONTACT RESISTANCE | 20Ω Max |
| (操作力量) OPERATION FORCE | 500±200gf |
| (絶緣電阻) INSULATION RESISTANCE | 100mΩ Min 500VDC |
| (電氣壽命) ENDURANCE | 10,000 CYCLES |

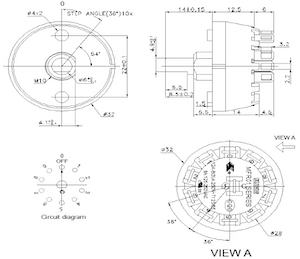

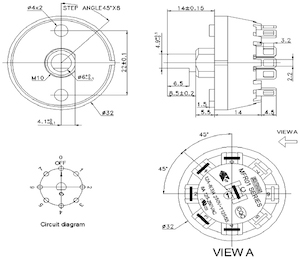

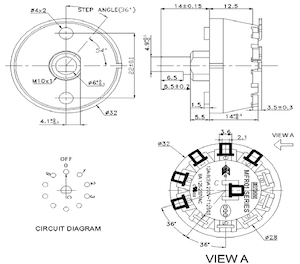

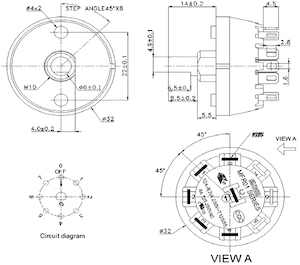

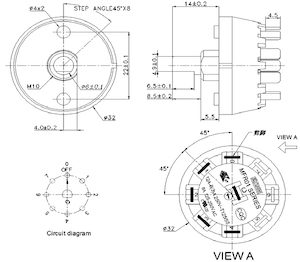

SPEC DRAWING(規格圖面) Unit: mm

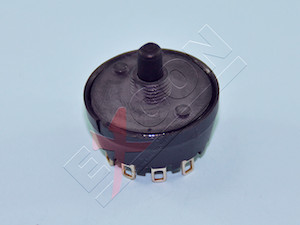

| MFR01-A1F03L1S-R | |
 |
 |

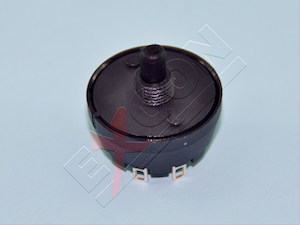

| MFR01-A2F01L1S-R | |
 |
 |

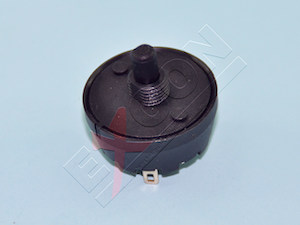

| MFR01-A2F01L1E-R | |
 |
 |

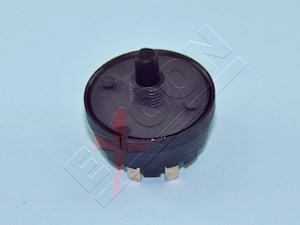

| MFR01-A2F02L1F-R | |
 |
 |

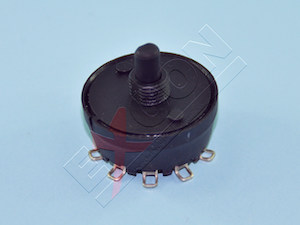

| MFR01-A1M03L1L-R | |
 |
 |

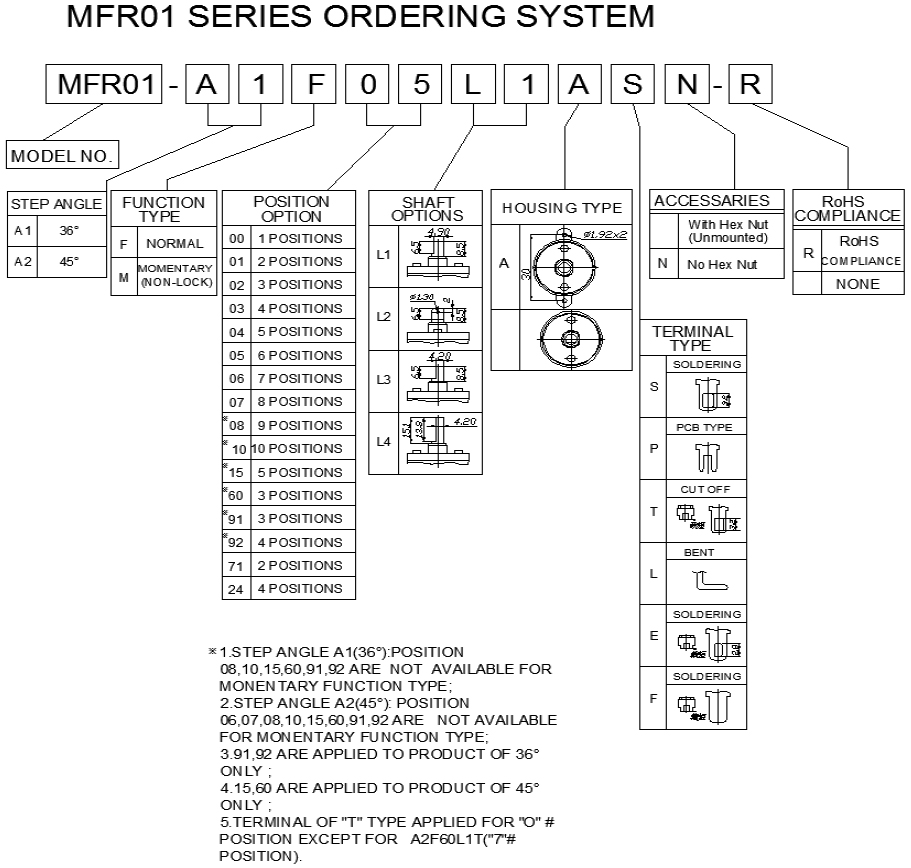

HOW TO ORDER (採購識別碼)
