Extractor Tool

Extractor Tool

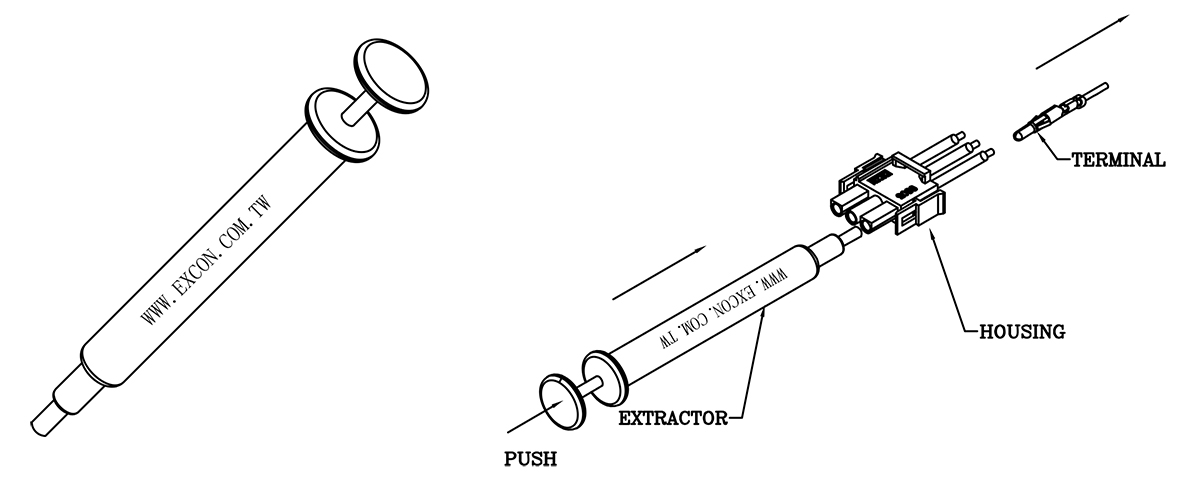

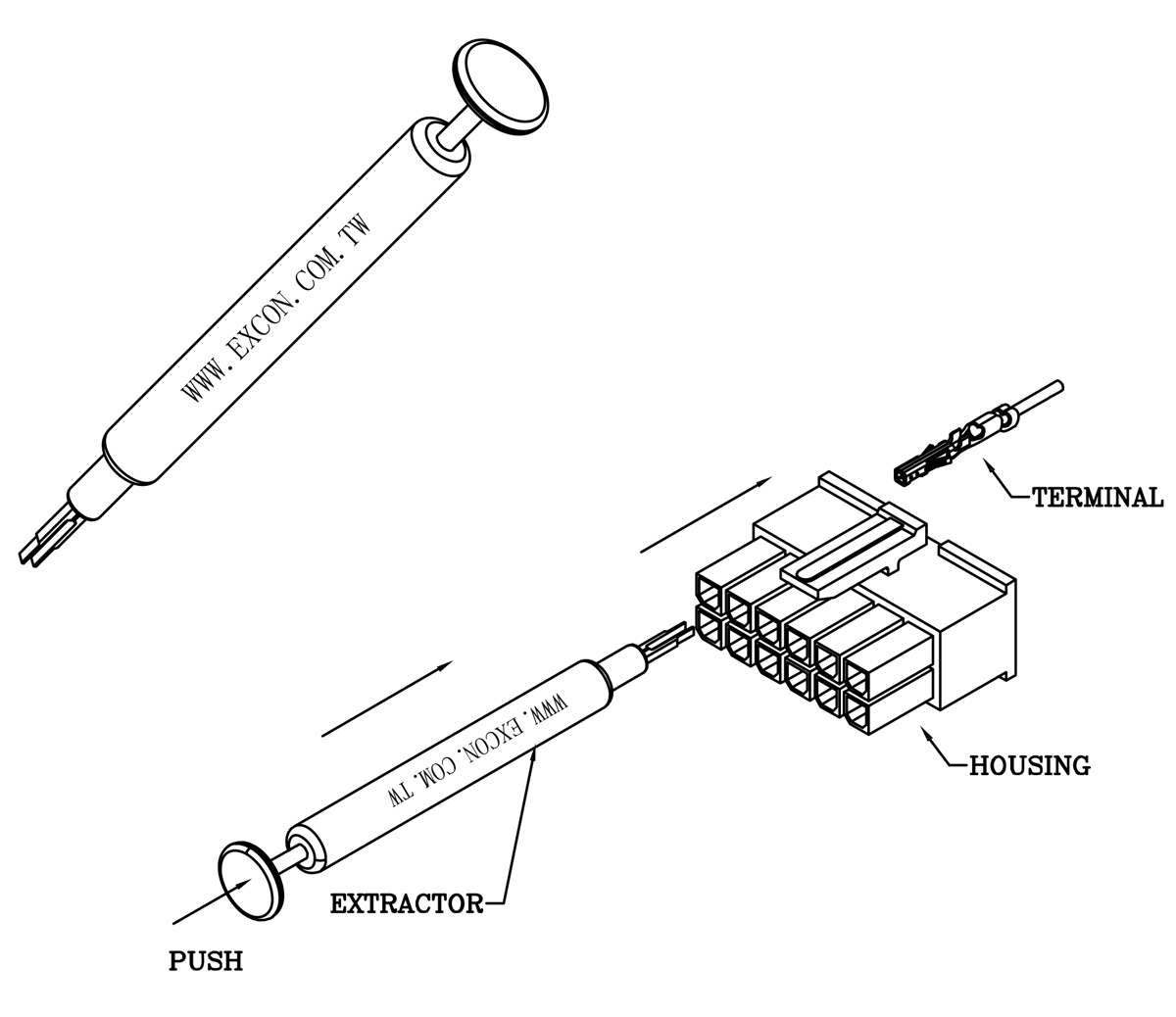

This Extractor Tool is for the removal of crimped terminals from their housings. ET-A-TYPE

Ordering Information and Dimensions:

ET-A-TYPE

(P/N Tool No:)	Scope Product

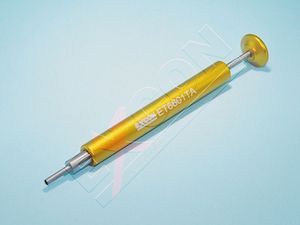

ET6601TA001	6601 & 6602 Series Male Terminal
ET6601TB001	6601 & 6602 Series Female Terminal
ET6603TA001	6603 Series Male Terminal

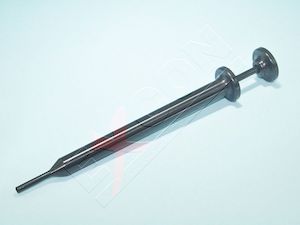

ET6603TB001	6603 Series Female Terminal
ET6604TA001	6604 & 6607Series Male Terminal
ET6604TB001	6604 & 6607 Series Female Terminal

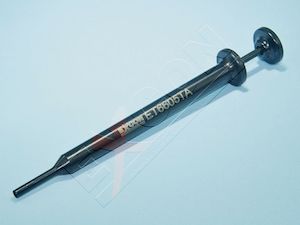

ET6605TA001	6605Series Male Terminal

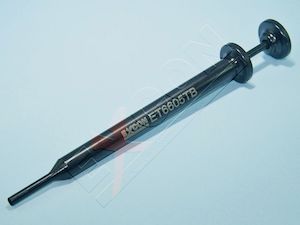

ET6605TB001	6605 Series Female Terminal

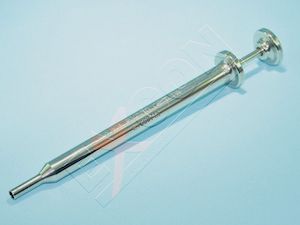

ET6607TA001	6603 & 6607Series Male Terminal

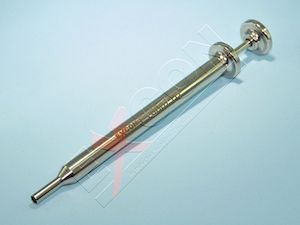

ET6607TB001	6603 & 6607 Series Female Terminal
ET6608TA001	6608Series Male Terminal
ET6608TB001	6608 Series Female Terminal

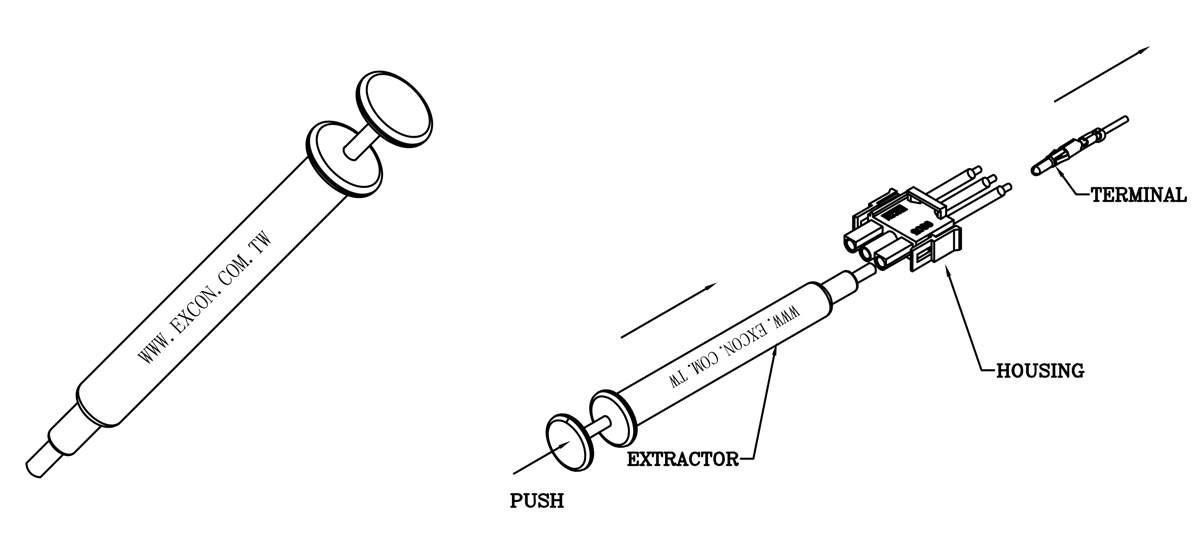

This Extractor Tool is for the removal of crimped terminals from their housings. ET-B-TYPE

Ordering Information and Dimensions:

ET-B-TYPE

(P/N Tool No:)	Scope Product

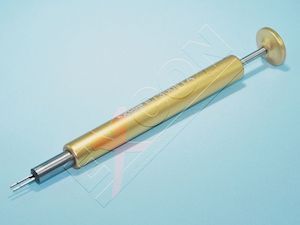

ET3001TA001	3001 & 3002 Series Male Terminal

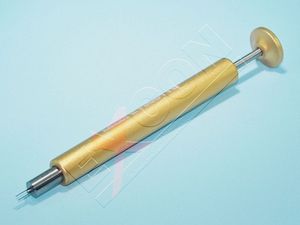

ET3001TB001	3001 & 3002 Series Female Terminal

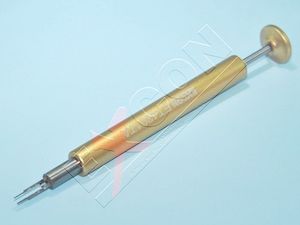

ET4201TA001	4201 & 4202 Series Male Terminal

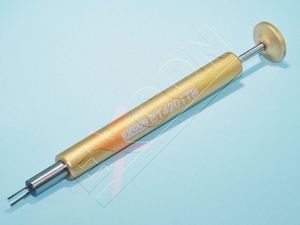

ET4201TB001	4201 & 4202 Series Female Terminal

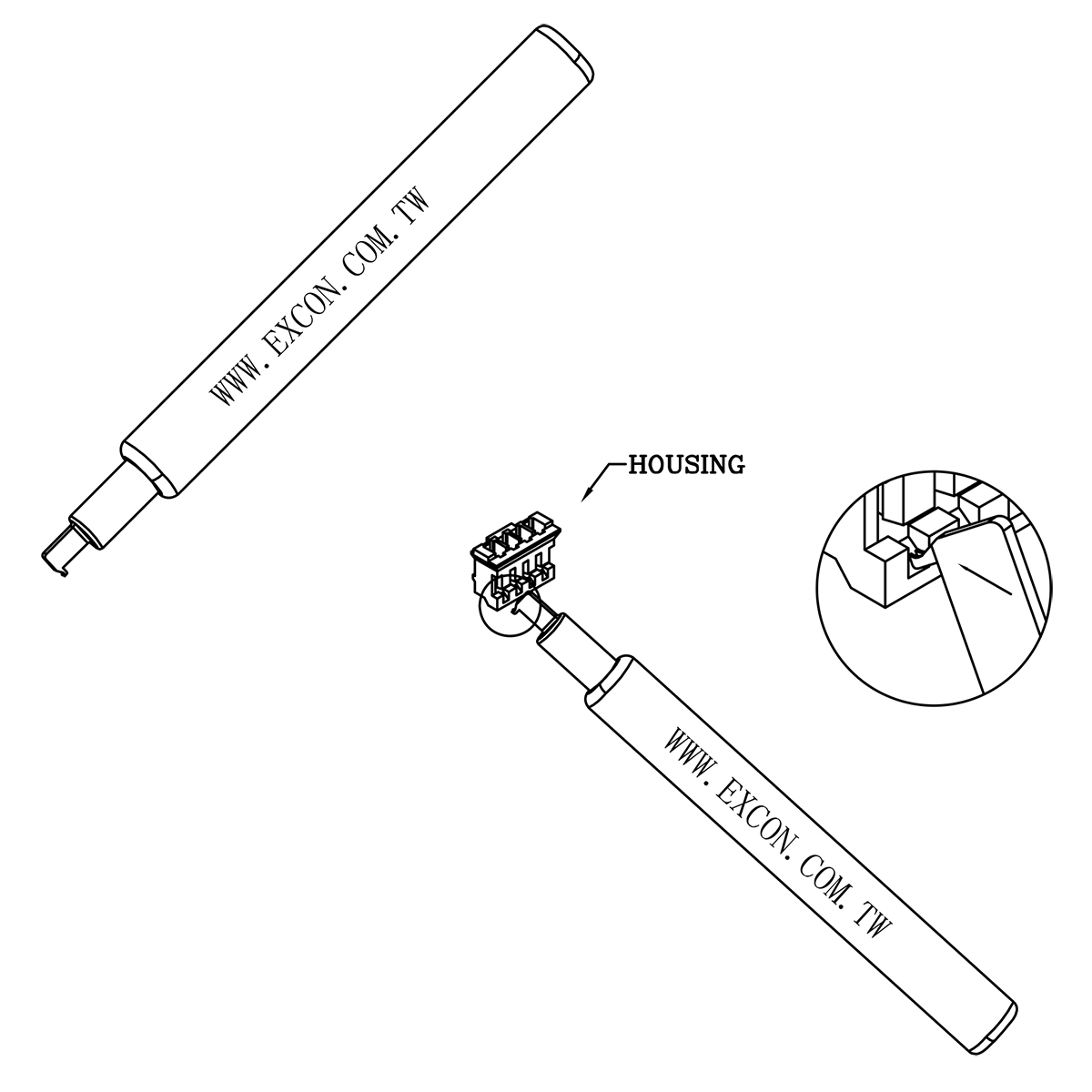

This Extractor Tool is for the removal of crimped terminals from their housings. ET-C-TYPE

Ordering Information and Dimensions:

ET-C-TYPE

(P/N Tool No:)	Scope Product

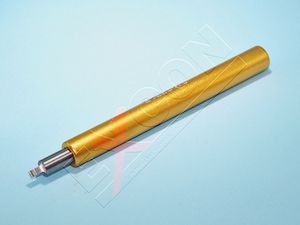

ET2501TC001	2501 Series Terminal
ET2503TC001	2503 Series Terminal
ET2505TC001	2505 Series Terminal
ET2506TB001	2506 Series Female Terminal
ET2507TA001	2507 Series Male Terminal
ET2510TC001	2510 Series Terminal

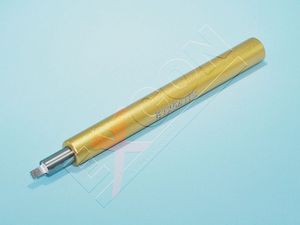

ET2541TC001	2512,2514& 2546 Series Terminal
ET2513TB001	2513 Series Terminal
ET2516TC001	2516 Series Terminal
ET2545TC001	2545 Series Terminal

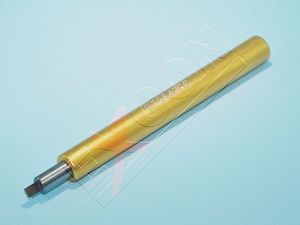

	2547 & 2548 Series Terminal
ET2549TC001	2549 Series Terminal
ET2550TC001	2550 & 2551 Series Terminal

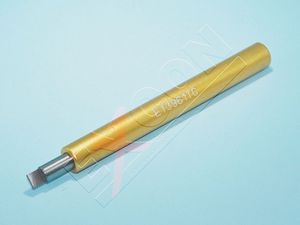

ET3961TC001	3961,3962,5084,5085 AND 5086 Series Terminal
ET5089TC001	5089,5090 & 5091 Series Terminal

This Extractor Tool is for the removal of crimped terminals from their housings. ET-D-TYPE

Ordering Information and Dimensions:

ET-D-TYPE

(P/N Tool No:)	Scope Product

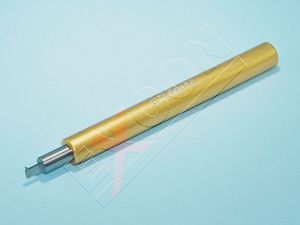

ET2001TC001	2001 Series Terminal
ET2002TC001	2002,2502 AND 2509 Series Terminal
ET2504TC001	2504 Series Terminal

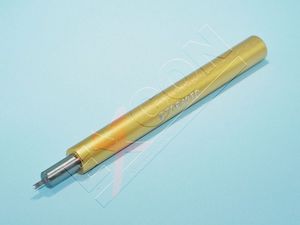

ET2542TC001	2542,2543,2544 AND 8820 Series Terminal
ET3964TC001	3964 Series Terminal
ET3965TC001	3965,5087 AND 5088 Series Terminal
