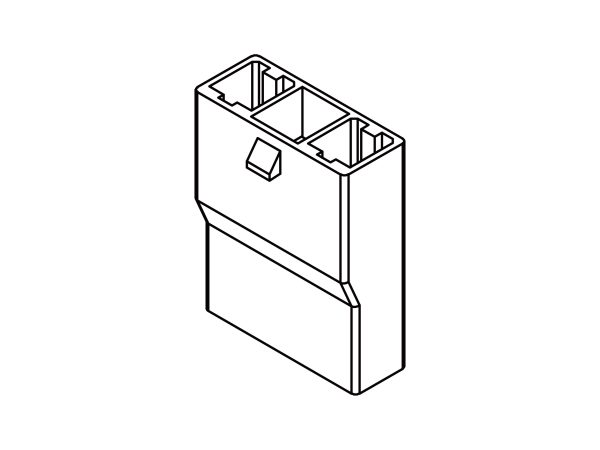

    6609xxHFxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    I我L

    Type Housing
    Pitch 6.2-7.3 mm (0.244-0.287 in)
    Contact Type Wire to Wire
    Series 6609
    Current rating 4A
    Voltang rating 300V AC / DC
    Withstand voltage 1500V AC / minute
    Contact resistance 10m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 2.0 mm
    Circuits 01,02,03,04,06P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
