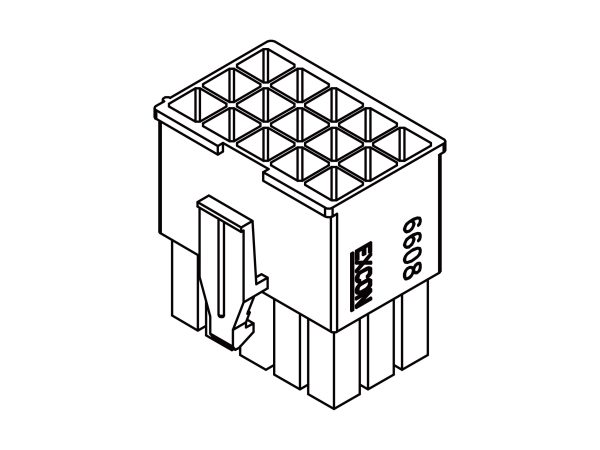

    6608xxHMxxx

    SKU N/A Categories , ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.7
    Type Housing
    Pitch 4.14 mm (0.163 in)
    Contact Type Wire to Board & Wire to Wire
    Series 6608
    Current rating 5A
    Voltang rating 600V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 2.0 mm
    Circuits 1~4,A4,6,8~10,12,A12,14~16,18,20,22,24P
    Material Nylon 66 UL 94V0 / V2
    Color Natural
    Drawing Drawing PDF Download
