    660100TBxxx

    660100TAxxx

    6601xxHMxxx

    6601xxHPxxx

    6601xxHFxxx
    Series

    660102HF

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

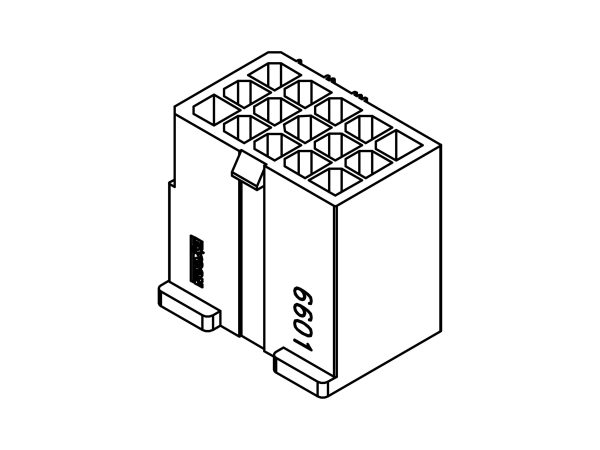

    6601xxHFxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.5
    Type Housing
    Pitch 4.80 mm (0.189 in)
    Contact Type Wire to Wire
    Series 6601
    Current rating 5A
    Voltang rating 600V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 2.0 mm
    Circuits 02,03,04,06,09,12,15P
    Material Nylon 66 UL 94V-2
    Color Natural
    Drawing Drawing PDF Download
