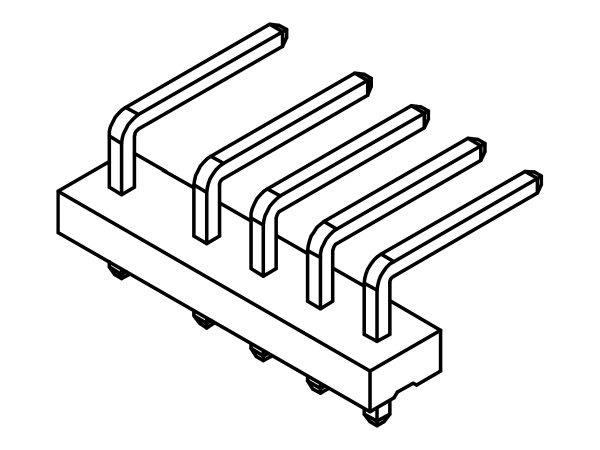

    5088xxWBxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Wafer
    Pitch 7.0-5.0 mm (0.292-0.197 in)
    Contact Type Wire to Board
    Series 5088
    Current rating 5A
    Voltang rating 250V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm
    Circuits 02 – 06P
    Material Nylon 66 UL 94V0 / V2
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #18~#24
    Insulation O.D 1.3 ~ 3.2 mm
