    508200TCxxx

    5082xxHAxxx
    Series

    508202HA

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

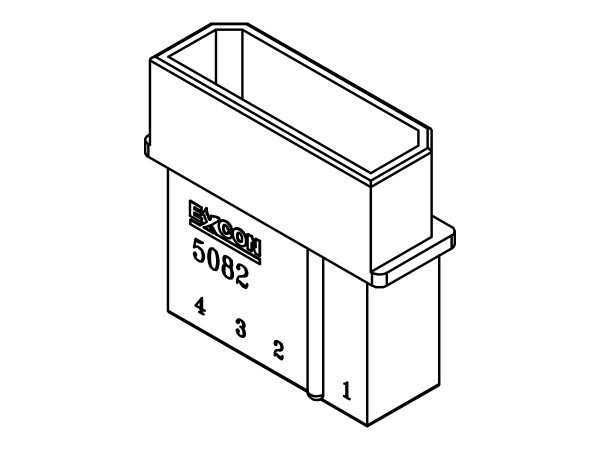

    5082xxHAxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.1
    Type Housing
    Pitch 5.08 mm (0.200 in)
    Contact Type Wire to Wire
    Series 5082
    Current rating 5A
    Voltang rating 250V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm
    Circuits 02 – 04P
    Material Nylon 66 UL 94V-2
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #18~#24
    Insulation O.D 1.3 ~ 25 mm
