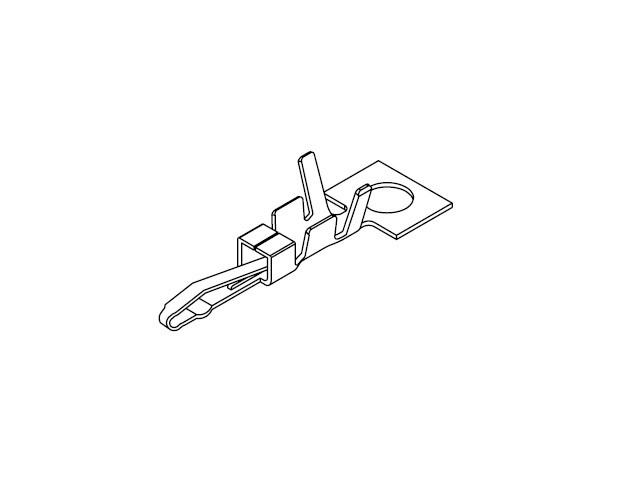

397000TCxxx
Specification
| Type | Terminal |
| Pitch | 3.96 mm (0.156 in) |
| Contact Type | Board-in Crimp style connectors |
| Series | 3970 |
| Current rating | 7A |
| Voltang rating | 250V AC / DC |
| Withstand voltage | 1500V AC / minute |
| Insulation resistance | 1000M Ω min |
| Contact resistance | 10m Ω max |
| Temperature range | -25℃ to + 105℃ (including temperature rise) |
| Applicable PC board thickness | 1.0 ~ 1.6 mm |
| Material | Brass / Phosphor |
| Drawing | Drawing PDF Download |
| Applicable wires | AWG #18~#22 |
| Finishing | Tin plated |
