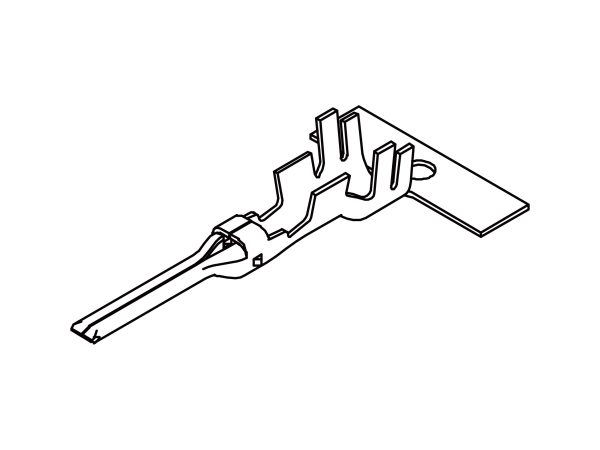

    396900TAxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Terminal
    Pitch 3.96 mm (0.156 in)
    Contact Type Wire to Wire
    Series 3969
    Current rating 5A
    Voltang rating 300V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -30℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm
    Material Brass / Phosphor
    Drawing Drawing PDF Download
    Applicable wires AWG #16~#20
    Insulation O.D 1.8 ~ 3.1 mm
    Finishing Tin Pre-plated
