| UL Approval |
E237407 Section.7 |

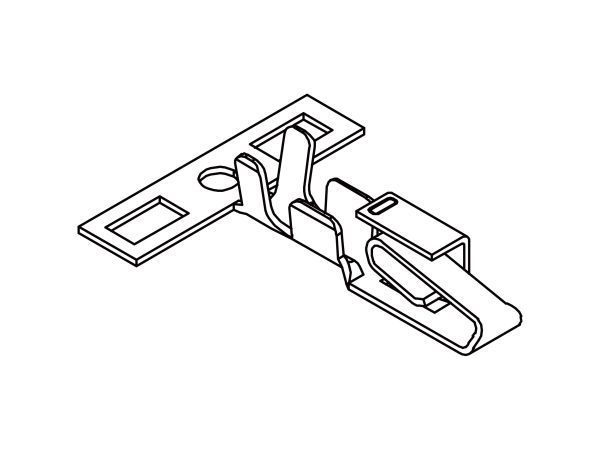

| Type |
Terminal |
| Pitch |
3.96 mm (0.156 in) |
| Contact Type |
Wire to Board |
| Series |
3968 |
| Current rating |
5A |
| Voltang rating |
250V AC / DC |
| Withstand voltage |
1000V AC / minute |
| Insulation resistance |
1000M Ω min |
| Contact resistance |
10m Ω max |
| Temperature range |
-25℃ to + 105℃ (including temperature rise) |
| Applicable PC board thickness |
1.0 ~ 1.6 mm |
| Material |
Brass / Phosphor |
| Drawing |
Drawing PDF Download |
| Applicable wires |
AWG #18~#26 |
| Insulation O.D |
1.3 ~ 2.8 mm |
| Finishing |
Tin plated / Tin Pre-plated |
