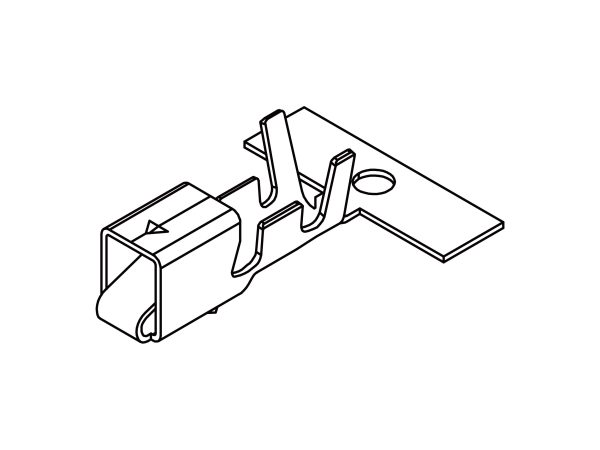

    396200TCxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.2
    Type Terminal
    Pitch 3.96 mm (0.156 in)
    Contact Type Wire to Board
    Series 3962
    Current rating 5A
    Voltang rating 250V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm
    Material Brass / Phosphor
    Drawing Drawing PDF Download
    Applicable wires AWG #18~#22
    Insulation O.D 1.7 ~ 3.0 mm
    Finishing Tin Pre-plated
