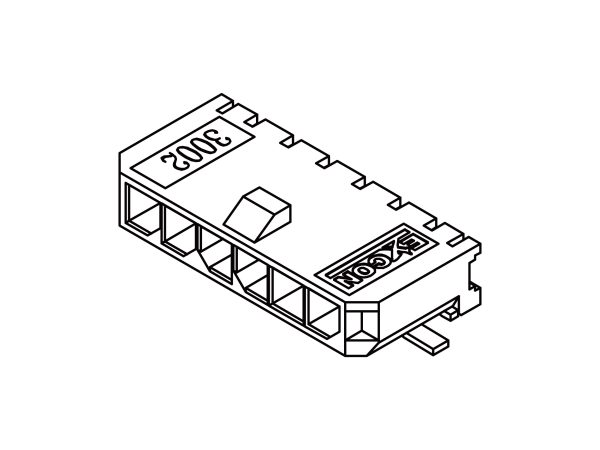

    3002xxWExxx

    SKU N/A Categories , ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.8
    Type Wafer
    Pitch 3.00 mm (0.118 in)
    Contact Type Wire to Board & Wire to Wire
    Series 3002
    Current rating 5A
    Voltang rating 250V AC / DC
    Withstand voltage 1500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm
    Circuits 02 – 12P
    Material Polyester LCP UL 94V-0
    Color Black
    Drawing Drawing PDF Download
