    254204HH298
    Series

    254201HH

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

    254204HH298

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.1

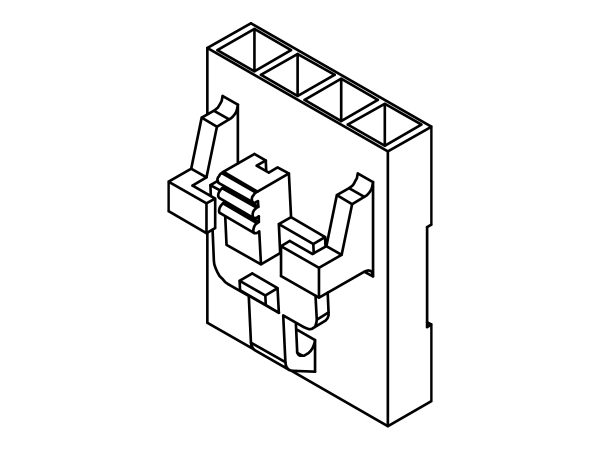

    Type Housing
    Pitch 2.54 mm (0.100 in)
    Contact Type Wire to Board
    Series 2542
    Current rating 3A
    Voltang rating 250V AC / DC
    Withstand voltage 1000V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm
    Material PP0 UL 94V1
    Color Black
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#28
    Insulation O.D 1.2 ~ 1.7 mm
