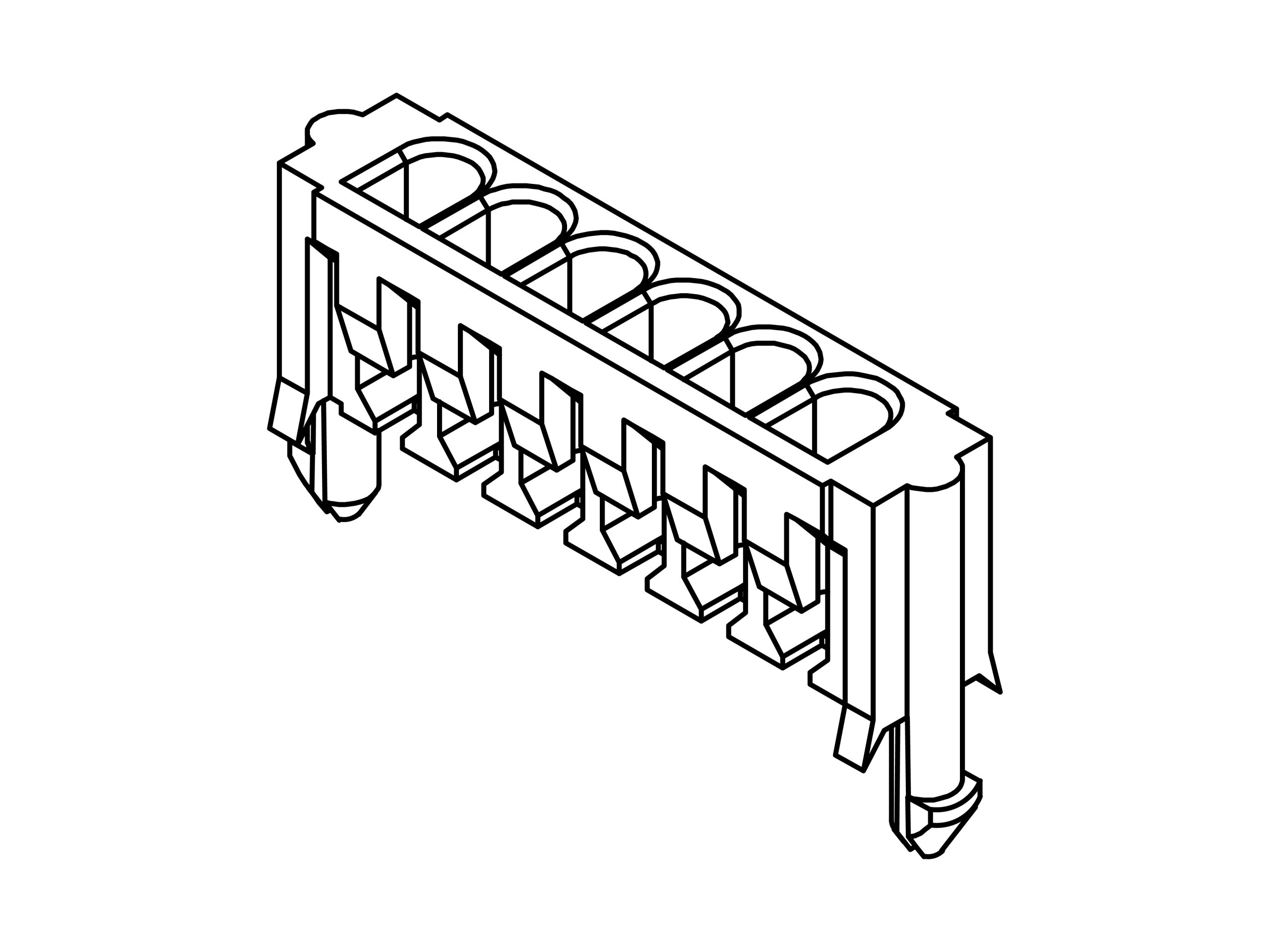

    2518xxHBxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Housing
    Pitch 2.50 mm (0.098 in)
    Contact Type Board In System
    Series 2518
    Current rating 1A
    Voltang rating 125V AC / DC
    Withstand voltage 800V AC / minute
    Insulation resistance 1000M Ω min
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm
    Circuits 02 – 20P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #24~#26
    Insulation O.D 0.6 ~ 1.2 mm
