    This product is currently out of stock and unavailable.

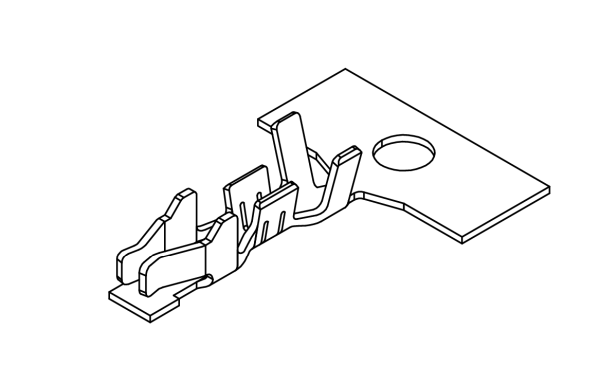

    201000TCxxx

    SKU N/A Categories ,

    This product is currently out of stock and unavailable.

    Specification

    Type Terminal
    Pitch 2.00 mm (0.079 in)
    Contact Type Wire to Board
    Series 2010
    Current rating 1A
    Voltang rating 125V AC / DC
    Withstand voltage 1000V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm
    Material Phosphor
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#28
    Insulation O.D 0.9 ~ 1.5 mm
    Finishing Tin plated / Tin Pre-plated
