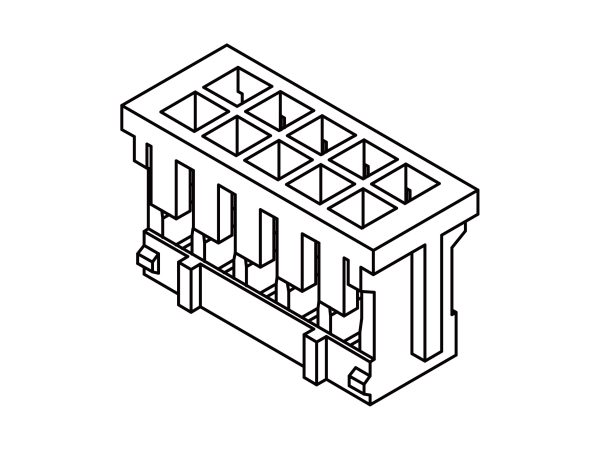

    2008xxHAxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.6
    Type Housing
    Pitch 2.00 mm (0.079 in)
    Contact Type Wire to Board
    Series 2008
    Current rating 3A
    Voltang rating 250V AC / DC
    Withstand voltage 800V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 10m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm
    Circuits 06 – 36P
    Material Nylon 66 UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #22~#28
