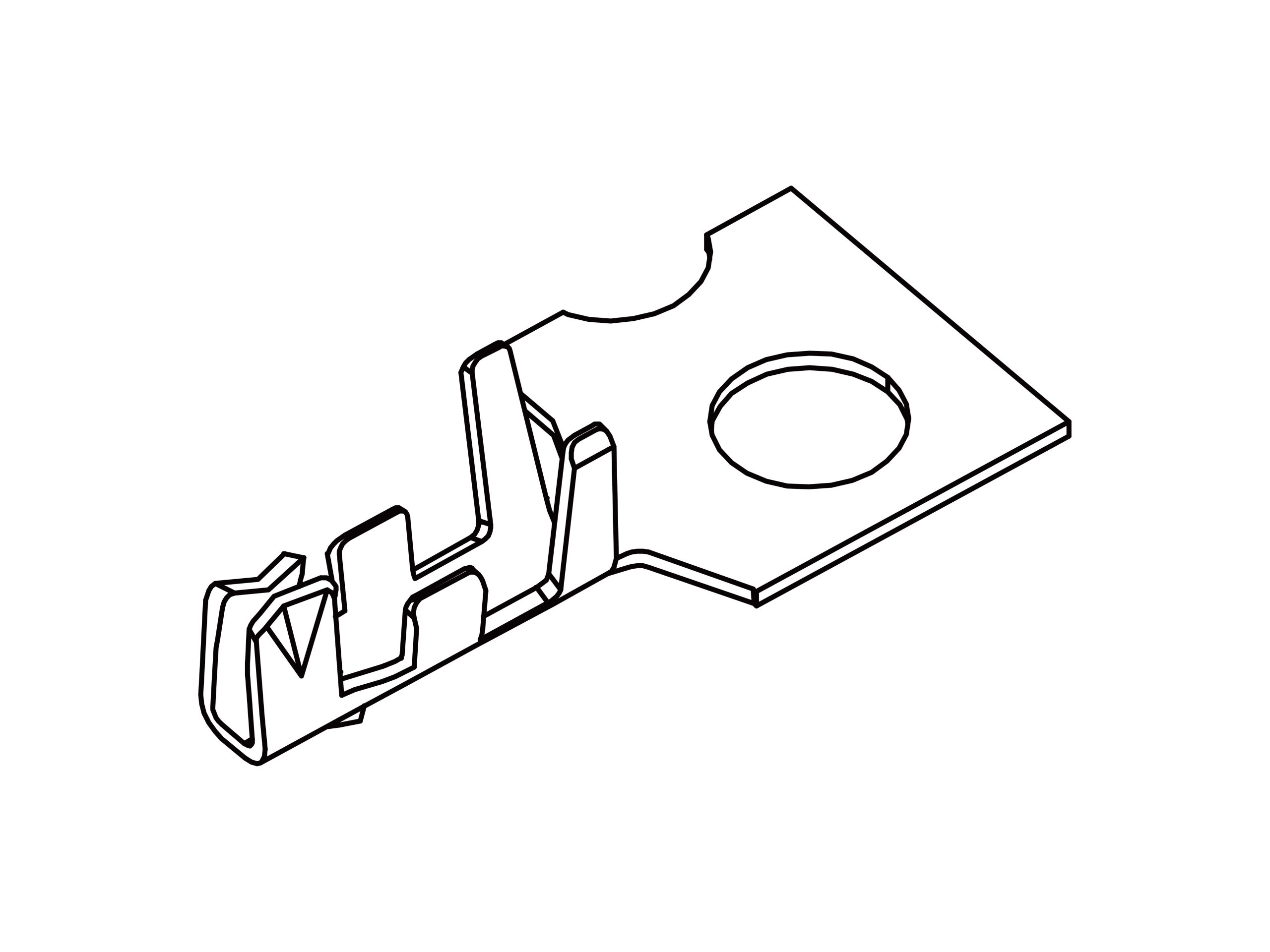

    125100TCxxx

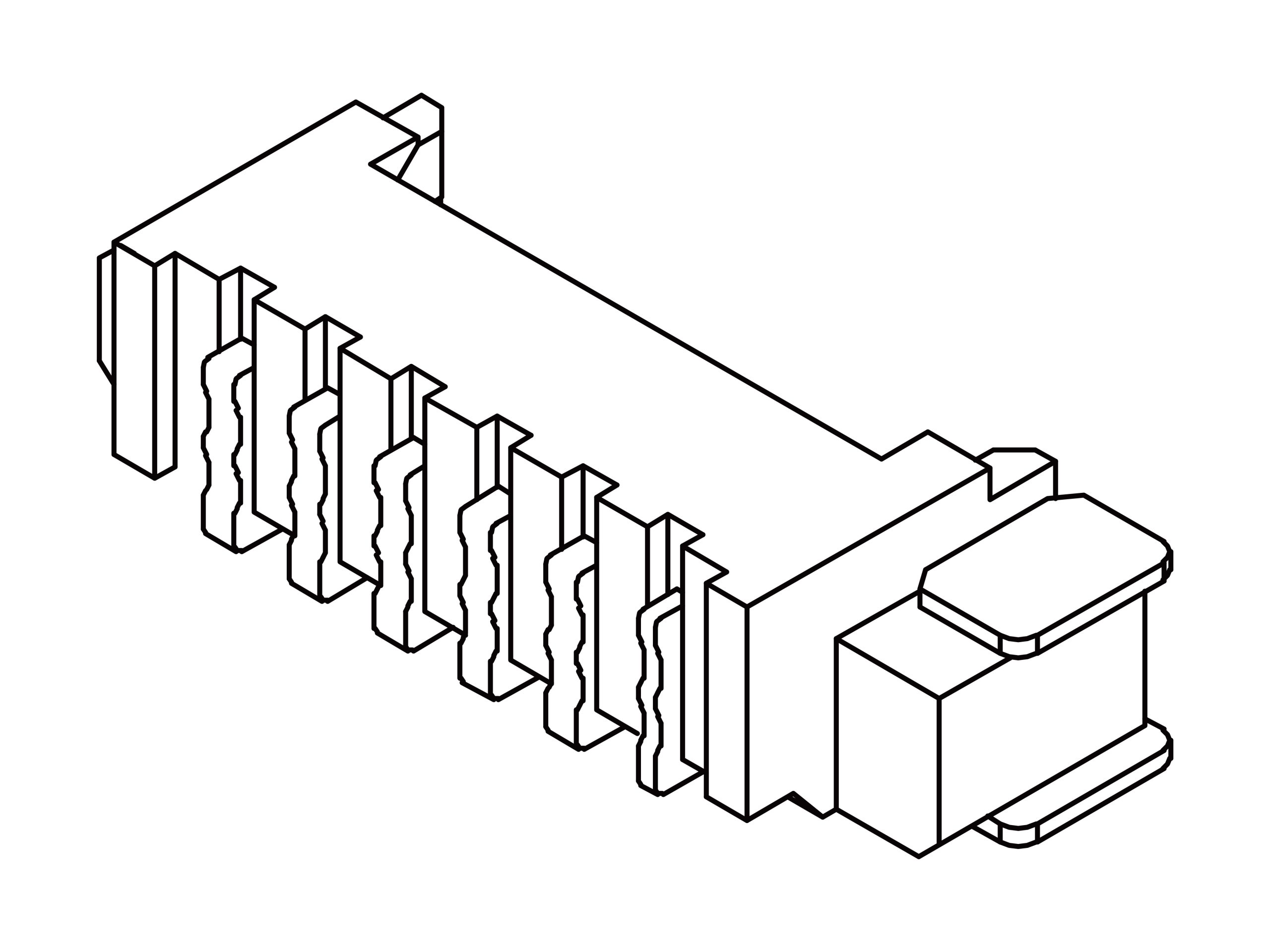

    1251xxWExxx

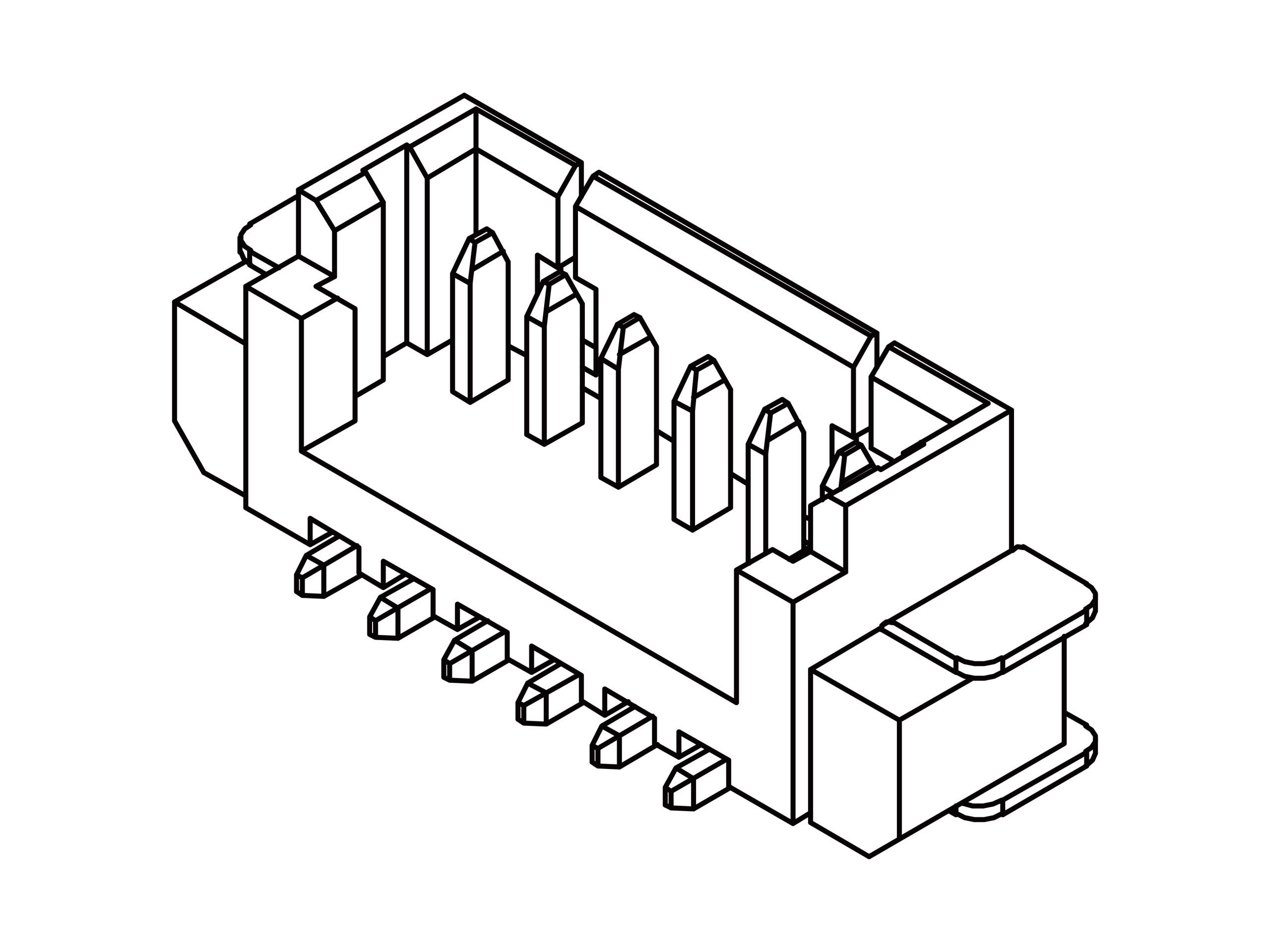

    1251xxWDxxx

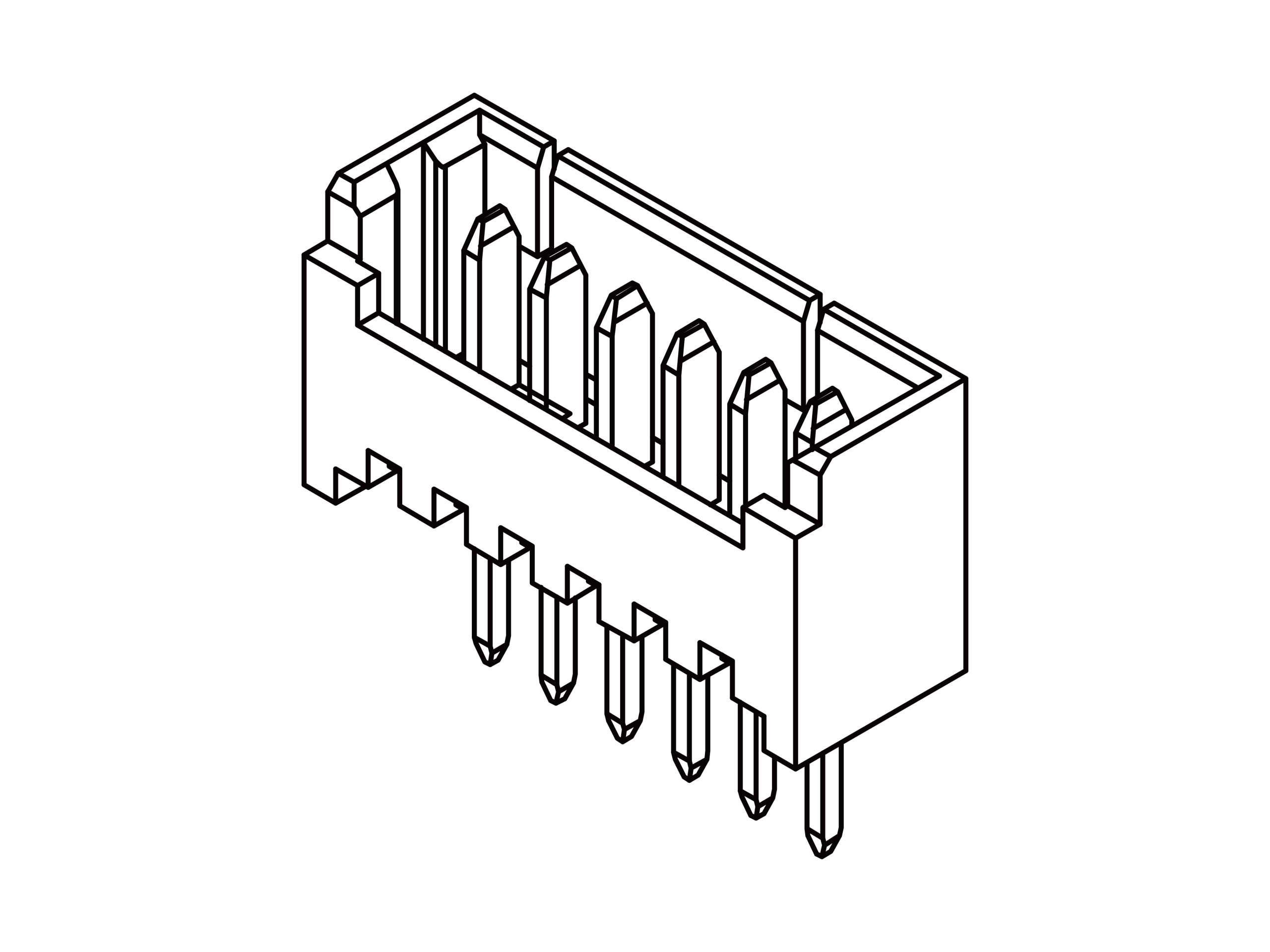

    1251xxWVxxx

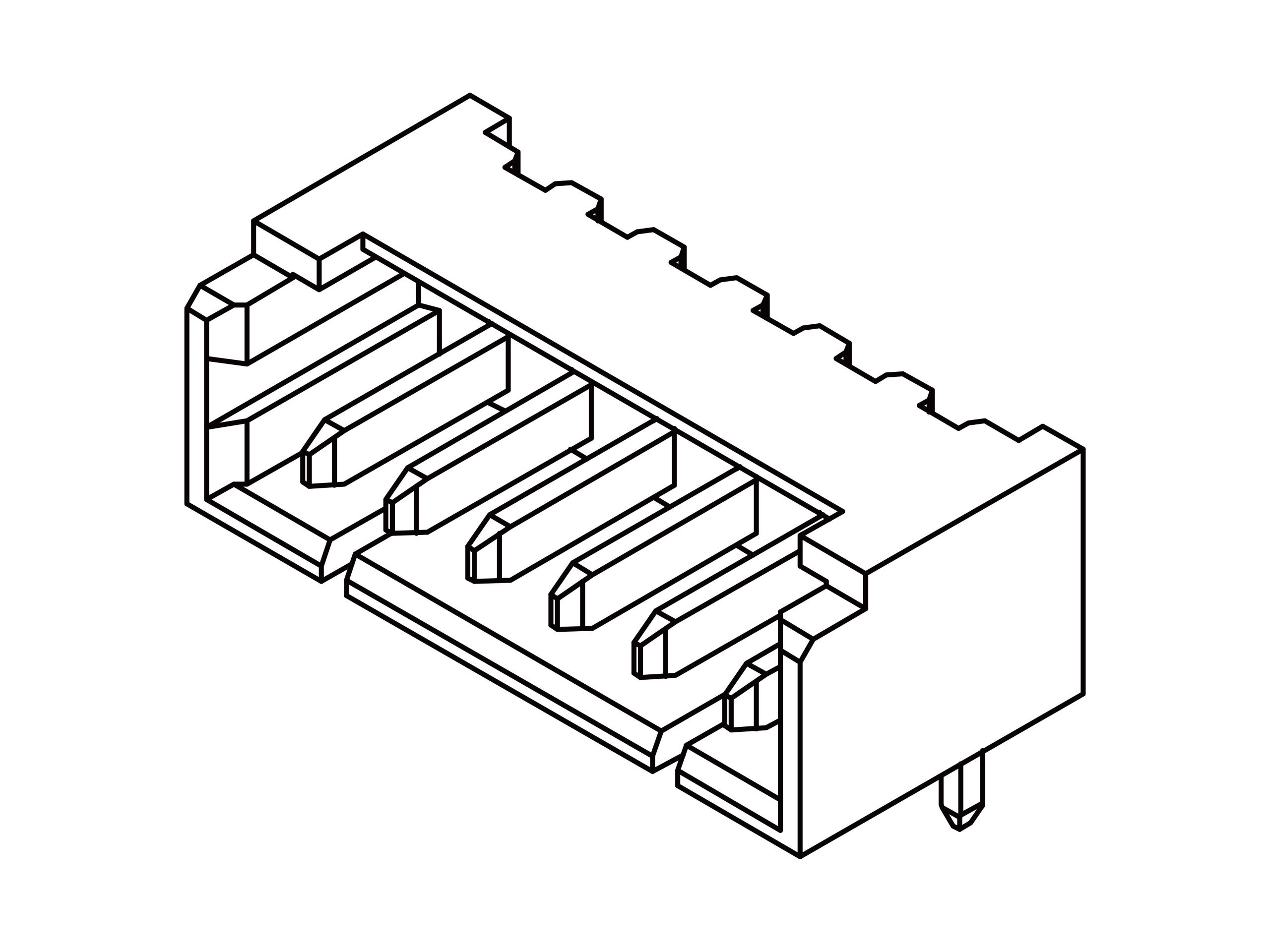

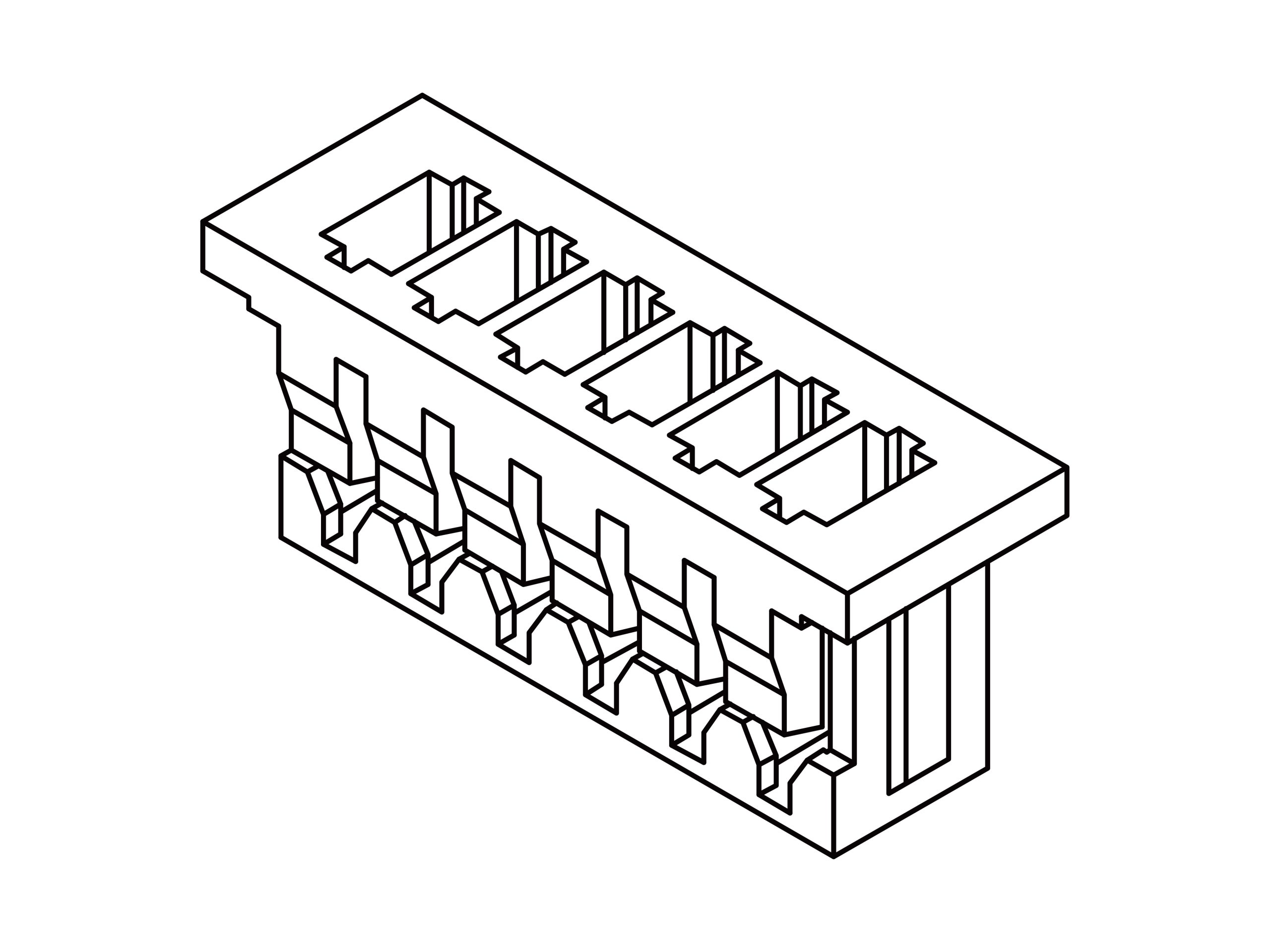

    1251xxHAxxx

    1251xxWRxxx
    Series

    125102WR

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

    1251xxWRxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    UL Approval E237407 Section.4
    Type Wafer
    Pitch 1.25 mm (0.049 in)
    Contact Type Wire to Board
    Series 1251
    Current rating 1A
    Voltang rating 100V AC / DC
    Withstand voltage 500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -40℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 1.0 ~ 1.6 mm
    Circuits 02 – 15P
    Material Nylon 6T UL 94V-0
    Color Natural
    Drawing Drawing PDF Download
    Applicable wires AWG #26~#32
