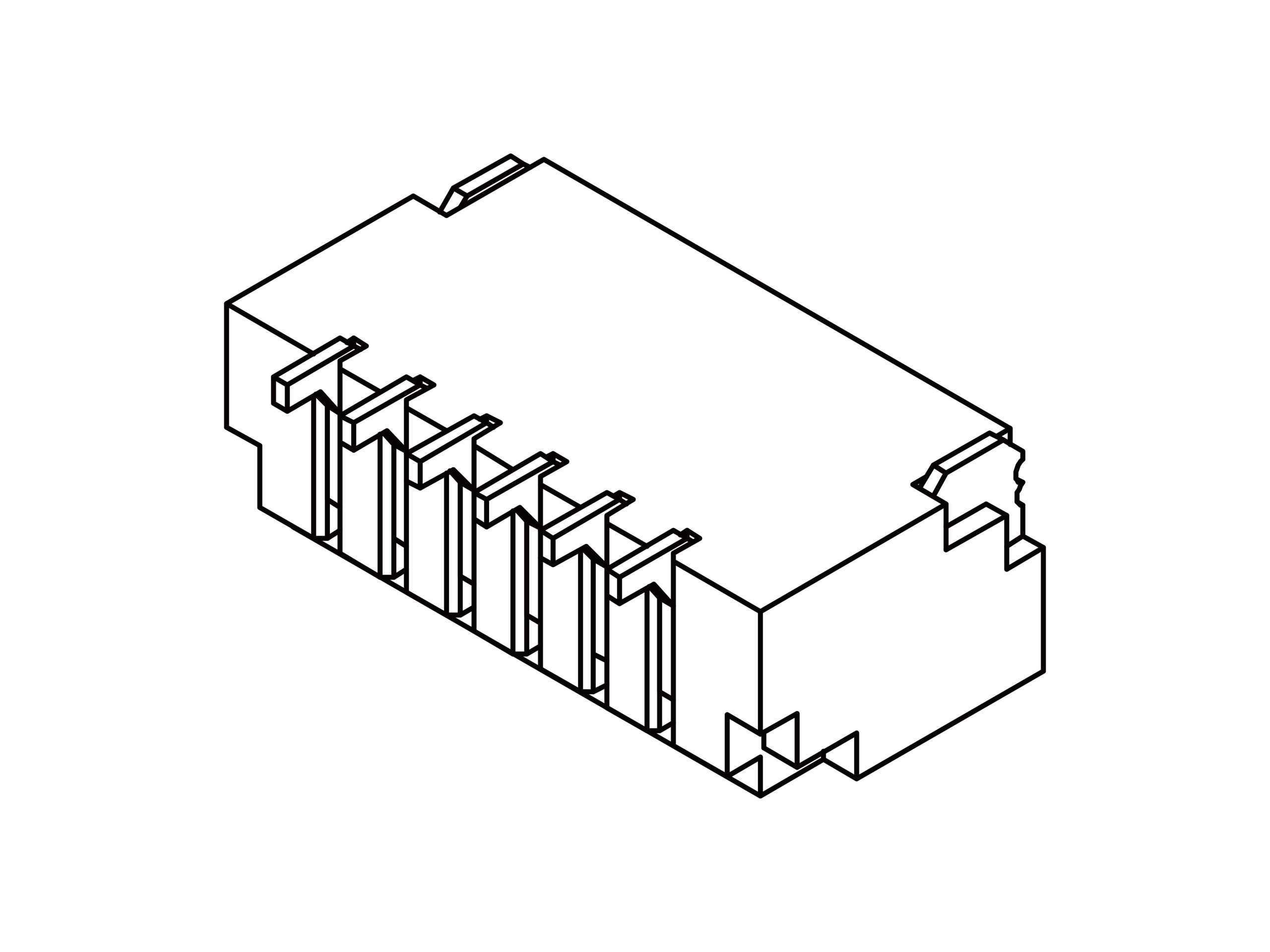

    1001xxWExxx

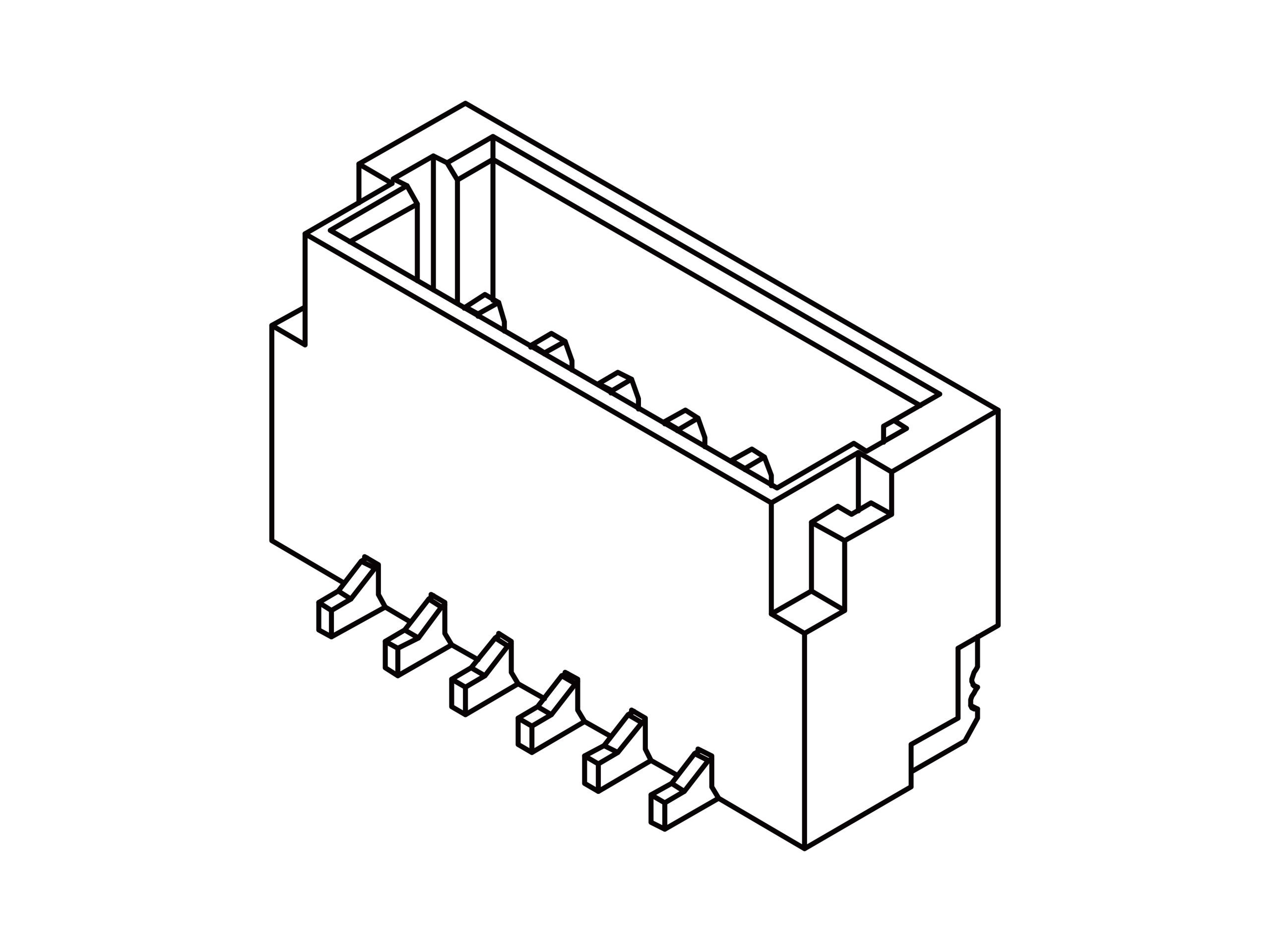

    1001xxWDxxx

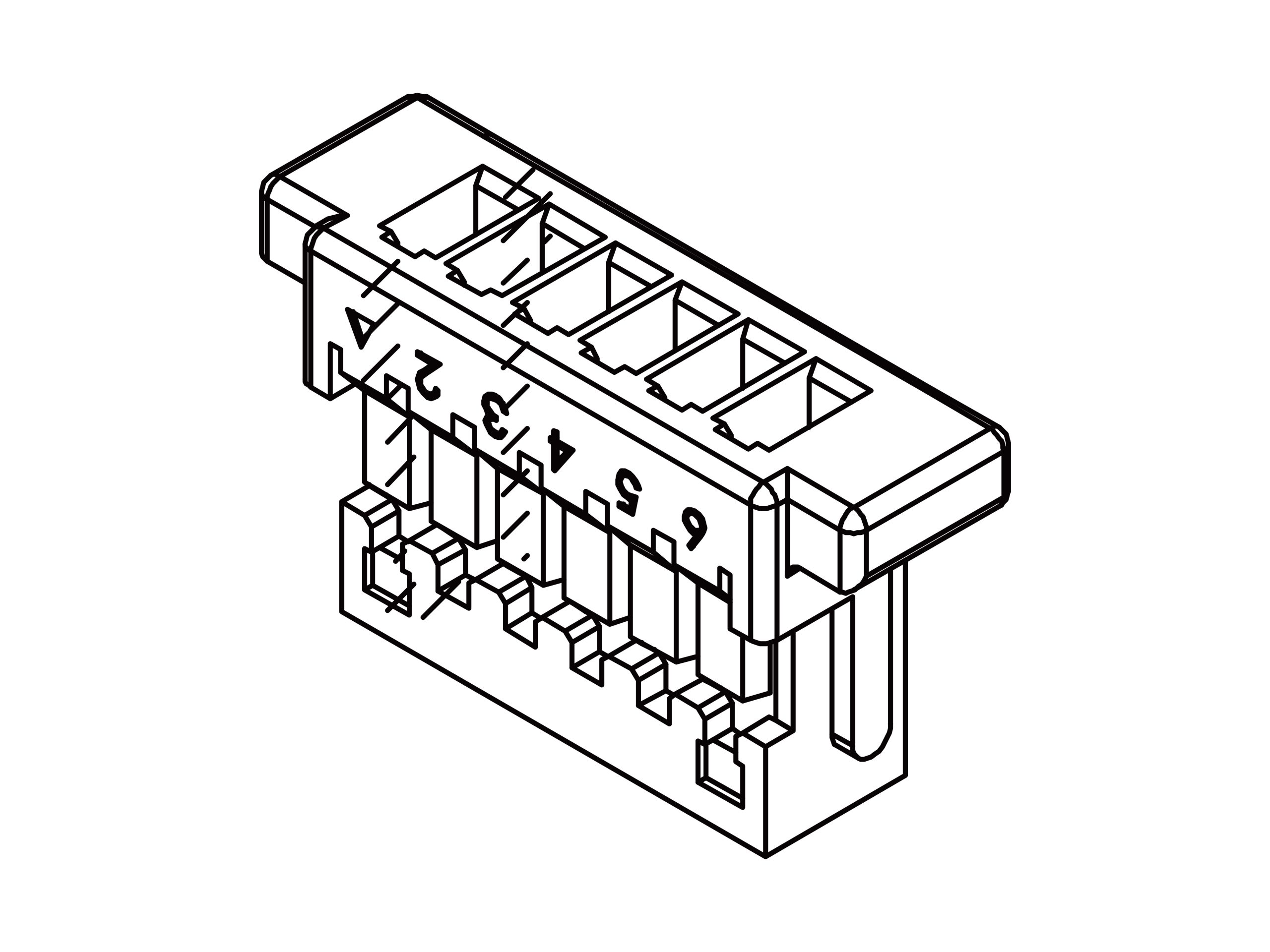

    1001xxHBxxx

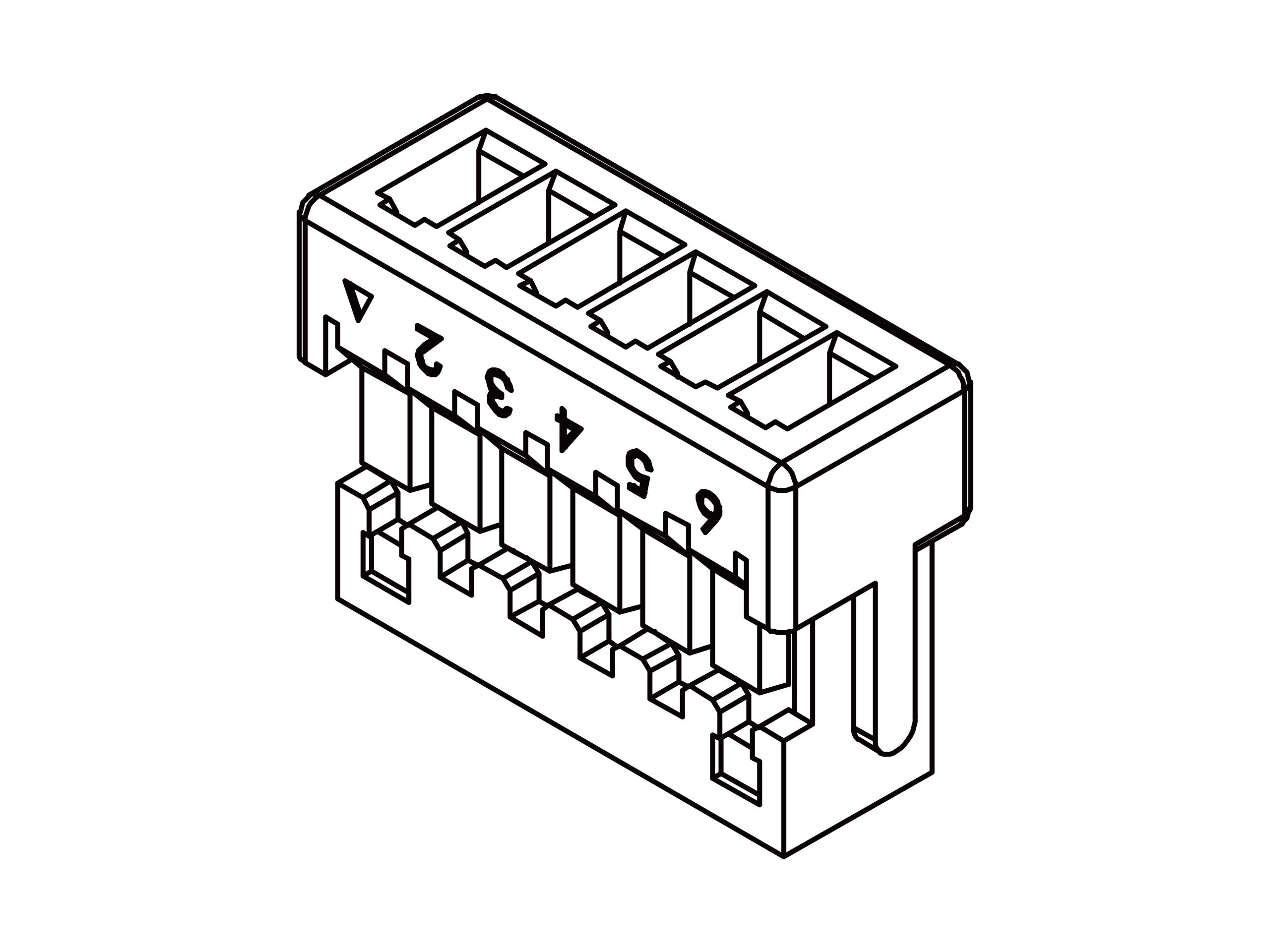

    1001xxHAxxx

    100100TCxxx
    Series

    100100TC

    Loading file
    • Fullscreen
    • Wireframe
    • Zoom In
    • Zoom Out
    • Rotation
    • Screenshot
    • Help

    Controls

    ×
    • Rotate with the left mouse button.
    • Zoom with the scroll button.
    • Adjust camera position with the right mouse button.
    • Double-click to enter the fullscreen mode.
    • On mobile devices swipe to rotate.
    • On mobile devices pinch two fingers together or apart to adjust zoom.
    • On mobile devices 3 finger horizontal swipe performs panning.
    • On mobile devices 3 finger horizontal swipe performs panning.
    Drawing PDF

    Drawing PDF Download

    Inquiry Cart +

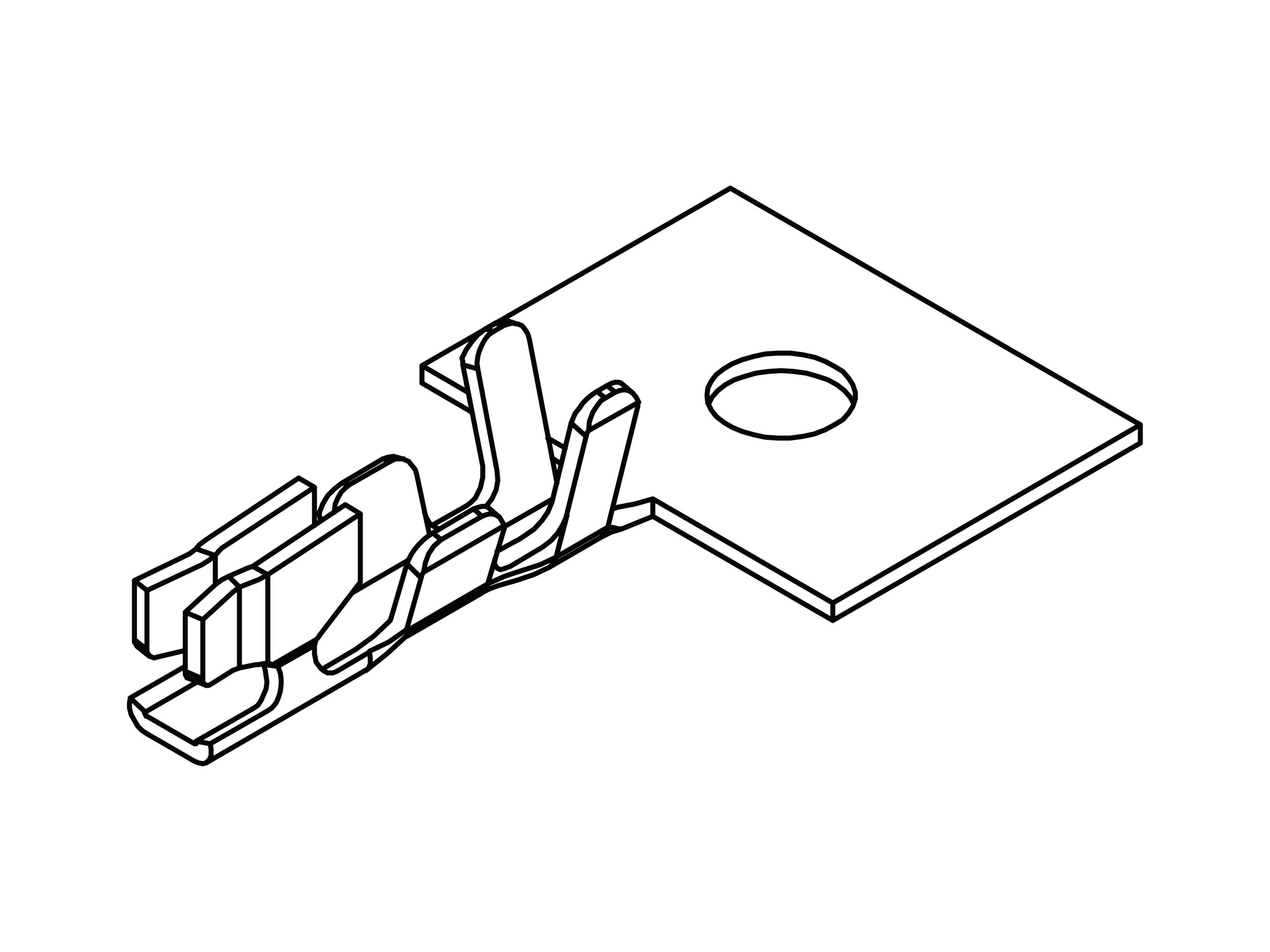

    100100TCxxx

    SKU N/A Categories ,
    Inquiry Cart +

    Specification

    Type Terminal
    Pitch 1.00 mm (0.039 in)
    Contact Type Wire to Board
    Series 1001
    Current rating 1A AC/DC
    Voltang rating 50V AC / DC
    Withstand voltage 500V AC / minute
    Insulation resistance 1000M Ω min
    Contact resistance 20m Ω max
    Temperature range -25℃ to + 105℃ (including temperature rise)
    Applicable PC board thickness 0.8 ~ 1.6 mm
    Material Phosphor
    Drawing Drawing PDF Download
    Applicable wires AWG #28~#32
    Insulation O.D 0.4 ~ 0.8 mm
    Finishing Tin plated
